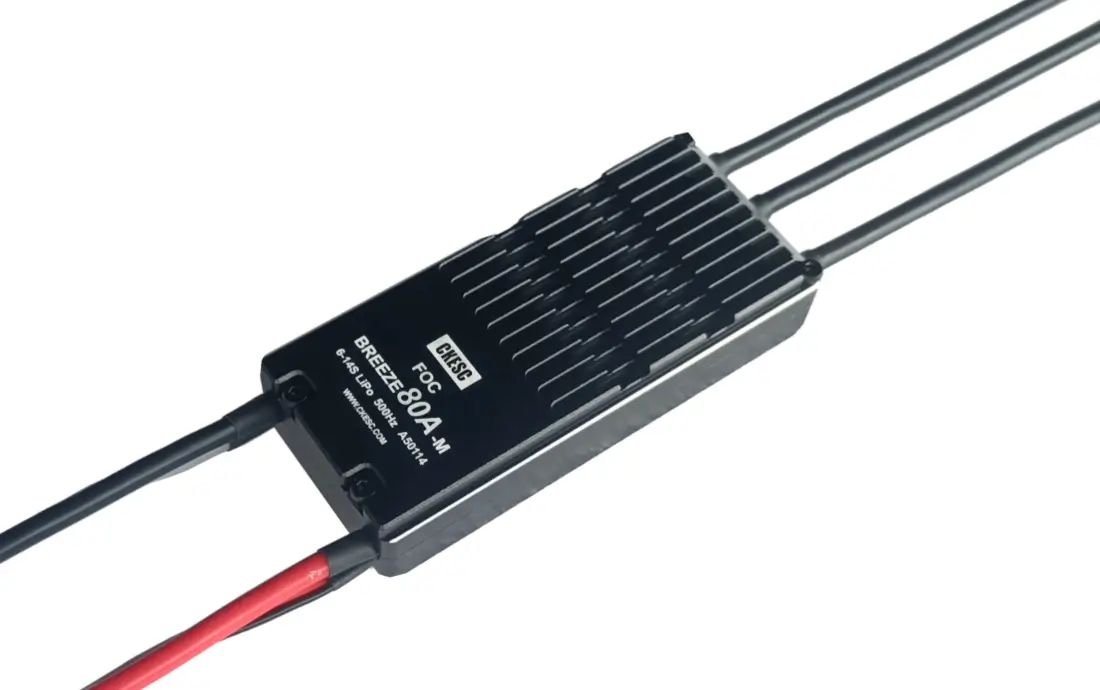

Breeze 80A-M FOC

FOC drive, efficient algorithm, good adaptability, high force efficiency, low noise, better throttle linearity.
Lightweight design, easy to use, stable and reliable, good speed regulation performance.
Serial control and output (customizable).

Low-voltage protection: Motor start-up is prohibited when the power supply voltage is lower than the permissible value.
High voltage protection: prohibit the motor from starting when the power supply voltage exceeds the allowable value.
Startup protection: If the startup is unsuccessful, the startup current will be limited, and the startup will be restarted automatically.
Stall protection: If a stall occurs during normal operation (usually caused by external force), try to restart (note that the stall may damage the ESC when the throtor is high).
Over-temperature protection: When the temperature exceeds 120°C, the maximum output power will be reduced slowly, up to 40% of the full throttle power, and the original power will be restored after the temperature is reduced.
Over-current protection: limit the peak current and do not exceed the limit value.
Overload Protection: When the motor is recognized to be overloaded, the maximum throttle is limited to protect the powertrain.
Loss of control protection: Gradually reduce the output power after losing the signal for 500ms, quickly reduce the throttle to less than 40% within 3 seconds, and then slowly reduce the throttle to stop.
Battery protection: Slowly limits the output throttle to prevent battery over-discharge.
