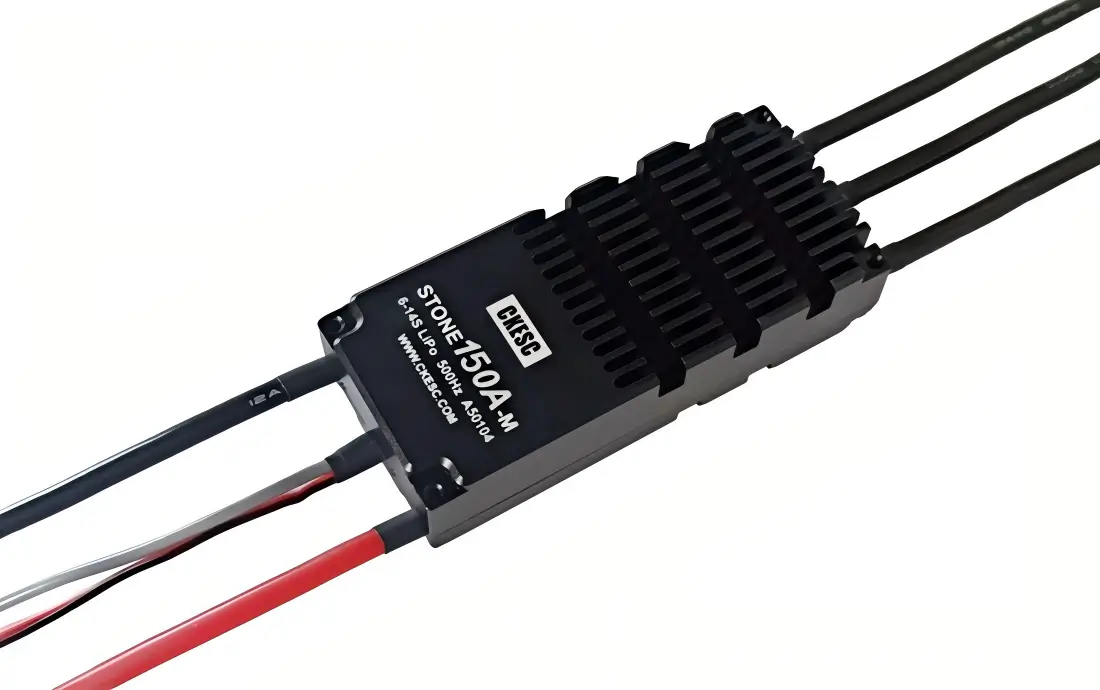

STONE 150A-M
- Industrial-grade professional procedures, safe and reliable
- Highly reliable start algorithm, no fear of headwind starting
- The throttle is anti-phase loss and fast throttle response to reduce the risk of crashes
- Highly intelligent, adaptive working parameters
- Secure matching
- Specification: 150A 6~14S
Features
- Multiple protection safety: low voltage protection, high voltage protection, start protection, locked-rotor protection, over-temperature protection, over-current protection, overload protection, runaway protection
- The direction of rotation can be set by software
- High-quality components, reliable performance, low internal resistance, MOS, instantaneous current resistance
- The serial port outputs real-time data such as power supply voltage, motor speed, current, ESC temperature and debugging data.
- Shielding signal lines reduces interference
- Optoelectronic isolation signal input and output interfaces isolate interference
- Waterproof Rating: IP55 / Customizable IP68
- Lightweight design, simple and easy to use, stable and reliable, strong anti-interference ability, good speed regulation performance
Multiple security features
- Low voltage protection: off by default (can be customized on).
- High voltage protection: prohibit the motor from starting when the power supply voltage exceeds the allowable value.
- Startup protection: If the startup is unsuccessful, the startup current will be limited, and the startup will be restarted automatically.
- Stall protection: If a stall occurs during normal operation (usually caused by external force), try to restart (note that the stall may damage the ESC when the throtor is high).
- Over-temperature protection: When the temperature exceeds 125°C, the maximum output power is slowly reduced, up to 40% of the full throttle power, and the original power is restored after the temperature is reduced.
- Over-current protection: limit the peak current and do not exceed the limit value.
- Overload Protection: When an overload is identified on the motor, the maximum throttle is limited to protect the powertrain.
- Loss of control protection: 200ms after the loss of signal gradually reduce the output power, in 1~2 seconds for rapid throttle reduction to less than 50%, and then slowly reduce the throttle to stop.
Technical parameters
- Model: STONE 150A-M
- Voltage: 6~14S
- Continuous working current: 110A (with specific heat dissipation)
- Instantaneous Working Current (1 second): 190A
- Size: 92*40.4*20.9mm
- Weight: 155g (including wire)
- Standby power consumption: ≤10mA@60V
- Waterproof rating: IP55
- Throttle travel range: 1000~2000us
- Throttle Refresh Rate: 50~500Hz (100~400Hz recommended)
- Throttle response time: 300ms
- Power cord: silicone cord - red/black - 12AWG - 150mm
- Output phase line: silicone wire - black - 12AWG - 100mm
- Signal Cable: UL1533-24AWG-Grey-550mm
- Data feedback line: PVC cable - 30 cores - black, red and white - 80mm
- Shell material: aviation aluminum alloy
- BEC: None
- Input signal level: 3.3 to 5V
- Temperature protection point: 125°C
- Operating ambient temperature: -20~65°C
- Communication Method: PWM
- Throttle Response Time: When the ESC receives 10%~100% step throttle, the throttle reaches the maximum value within the specified time, but usually the motor speed lags the throttle by 100~150ms.
- Performance parameters can be customized according to customer needs, including but not limited to protection temperature, response time, etc.
load test
Test conditions: ambient temperature 30 ℃, power supply voltage 48V, blowing air cooling, data for reference only
- The load current is 100A, the starting temperature is 31°C, and after 7 minutes of testing, it works normally, and the MOS temperature is 81°C
* Specific heat dissipation conditions (low ambient temperature, blowing air, auxiliary heat dissipation surface, feedback MOS temperature below 125℃), can run continuously 100A, continuous high temperature work will reduce the service life of the ESC, it is recommended to keep the feedback MOS temperature below 105℃ in practical applications.
