FT 80A
- Extreme Response
- BEC regulated power supply with multiple protection guarantees
- Industrial-grade professional procedures, safe and reliable
- Highly reliable start algorithm, no fear of headwind starting
- The throttle is anti-phase loss and fast throttle response to reduce the risk of crashes
- Highly intelligent, adaptive working parameters
- Secure matching
- Specification: 80A 6~14S
Features
- Multiple protection safety: low voltage protection, high voltage protection, start protection, locked-rotor protection, over-temperature protection, over-current protection, overload protection, runaway protection
- The direction of rotation can be set by software
- High-quality components, reliable performance, low internal resistance, MOS, instantaneous current resistance
- The serial port outputs real-time data such as power supply voltage, motor speed, current, ESC temperature and debugging data.
- Shielding signal lines reduces interference
- Optoelectronic isolation signal input and output interfaces isolate interference
- Waterproof Rating: IP55 / Customizable IP68
- Lightweight design, simple and easy to use, stable and reliable, strong anti-interference ability, good speed regulation performance
Multiple security features
- Low voltage protection: off by default (can be customized on).
- High voltage protection: prohibit the motor from starting when the power supply voltage exceeds the allowable value.
- Startup protection: If the startup is unsuccessful, the startup current will be limited, and the startup will be restarted automatically.
- Stall protection: If a stall occurs during normal operation (usually caused by external force), try to restart (note that the stall may damage the ESC when the throtor is high).
- Over-temperature protection: When the temperature exceeds 125°C, the maximum output power is slowly reduced, up to 40% of the full throttle power, and the original power is restored after the temperature is reduced.
- Over-current protection: limit the peak current and do not exceed the limit value.
- Overload Protection: When an overload is identified on the motor, the maximum throttle is limited to protect the powertrain.
- Loss of control protection: 200ms after the loss of signal gradually reduce the output power, in 1~2 seconds for rapid throttle reduction to less than 50%, and then slowly reduce the throttle to stop.
Technical parameters
Model：FT 80A
Lithium support：6~14S (higher than 65V prohibits startup)
Continuous operating current： 80A (specific thermal conditions)
Instantaneous operating current (less than 3 seconds)： 130A
Product Dimensions：90.4*36*24.1mm
ESC Weight：113g(with wire)
Standby power consumption：≤10mA@60V
Throttle response time:100ms (default, customizable)
BEC :5V 2A (switching buck)
0~100% response time. 0.6 seconds (partial power)
Throttle Refresh Rate:50~500Hz (100~400Hz recommended)
Throttle travel range:1000~2000us(Default)
Waterproof rating:IP55
- Throttle Response Time: When the ESC receives 10%~100% step throttle, the throttle reaches the maximum value within the specified time, but usually the motor speed lags the throttle by 100~150ms.
- Performance parameters can be customized according to customer needs, including but not limited to protection temperature, response time, etc.
load test
Test conditions: ambient temperature 30 ℃, power supply voltage 48V, blowing air cooling, data for reference only
- Load current 50A,, starting temperature 31°C, after 7 minutes of testing, working normally, MOS temperature 59°C
* Specific heat dissipation conditions (low ambient temperature, blowing air, auxiliary heat dissipation surface, feedback MOS temperature below 125℃), can run continuously 80A, continuous high temperature work will reduce the service life of the ESC, it is recommended to keep the feedback MOS temperature below 105℃ in practical applications.

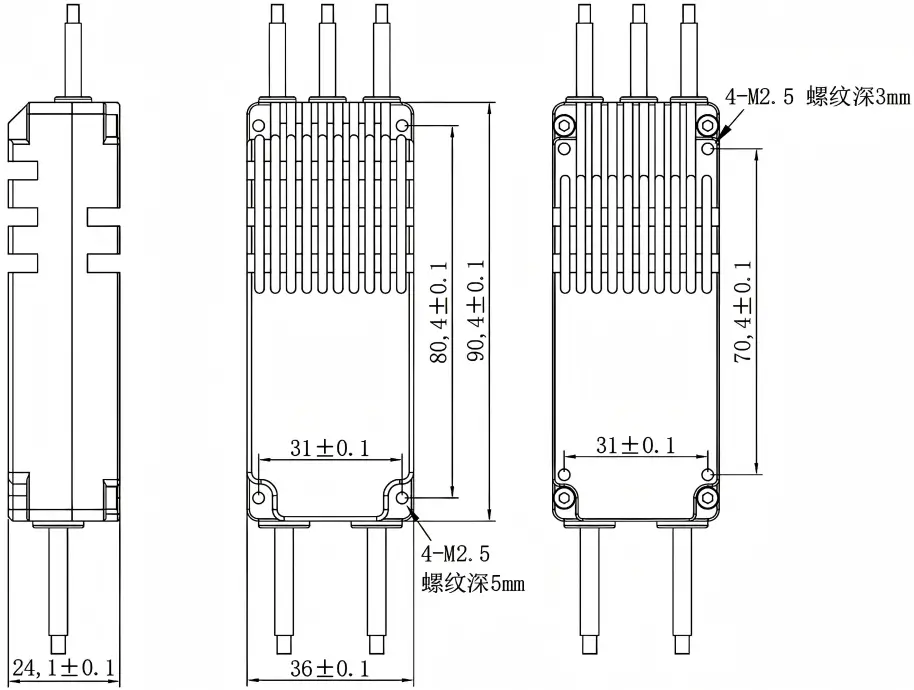

Drawings
